GPD

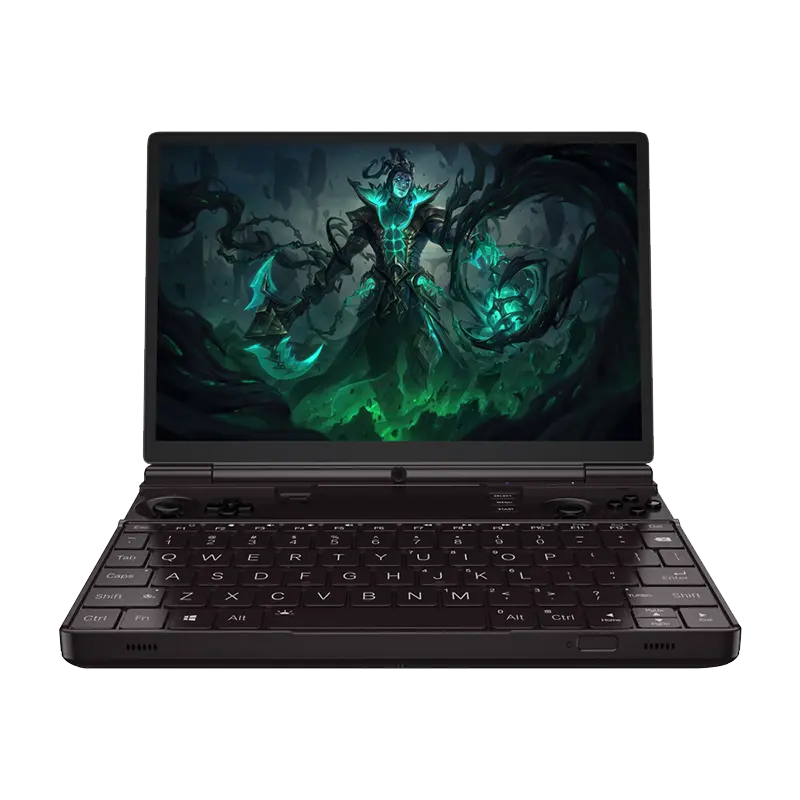

GPD WIN Max 2

Tech Specs Basic Information Product Name WIN Max 2 (2025) Product Positioning Handheld Gaming Laptop Operating System Pre-installed With Windows 11 Home 24H2 Display Screen Type Corning Gorilla Glass 5，IPS Technology Characteristic Full Screen Touch Panel 10-point Touch Control Screen Size 10.1 inches Frequency 60Hz Aspect Ratio 16:10 Screen Resolution 2560 × 1600 Pixels Per Inch 299 PPI (RGB) CPU Product model AMD Ryzen™ AI 9 HX 370 AMD Ryzen™ 7 8840U CPU Architecture Zen 5 + Zen 5C（Strix Point） Zen 4（Hawk Point） Process Size 4nm 4nm # of CPU Cores / # of Threads 12C / 24T 8C / 16T Base Clock 2.0 GHz 3.3 GHz Max. Boost Clock 5.1 GHz 5.1 GHz Total Cache 36.75MB 24.5 MB NPU Architecture XDNA 2 XDNA AI Performance 50 TOPS 16 TOPS Total Processor Performance 80 TOPS 38 TOPS TDP 15W-35W 15W-35W GPU Processor Graphics AMD Radeon™ 890M AMD Radeon™ 780M Graphics Frequency 2900 MHz 2700 MHz Compute Units 16 CU 12CU Shading Units 1024 768 Floating-point Performance 23.76 TFLOPS (FP16)11.88 TFLOPS (FP32)742.4 GFLOPS (FP64) 17.82 TFlops（FP16）8.92 TFlops（FP32）556.8 GFlops（FP64） Pixel Rate 92.80 GPixel/s 92.80 GPixel/s Texture Rate 185.6 GTexel/s 139.2 GTexel/s Storage Memory 64GB 32GB Memory Types LPDDR5x 7500 MT/s LPDDR5x 7500 MT/s Memory Dual Channel Dual channels Dual channels Hard Disk Type M.2 SSD M.2 SSD Hard Disk Ports M.2（Socket 3）× 2 M.2（Socket 3）× 2 Supported Specifications M.2 NVMe 2280 × 1M.2 NVMe 2230 × 1 (Default is Empty, Needs to be Purchased Separately) M.2 NVMe 2280 × 1M.2 NVMe 2230 × 1 (Default is Empty, Needs to be Purchased Separately) Standard Capacity 2TB × 1 1TB × 1 Bus Specification PCIe 4.0 × 4 PCIe 4.0 × 4 Transfer Protocol NVMe 1.3 / 1.4 NVMe 1.3 / 1.4 Multimedia Support Audio System Built-in Audio Chipset Loudspeakers Built-in 4 Super Linear Speakers Webcam Built-in Camera: 2 Million Pixels, Maximum Resolution: 1612×1212, Super Wide-angle, High Refresh Rate Microphone Built-in Microphone Network Communications 4G LTE Module Supports Onboard Card Slot, Separate Purchase RequiredSIM Card Type: Nano-SIM, Single SIM4G Network：TD-LTE，FDD-LTE3G Network：WCDMA/TD-SCDMA/CDMA2G Network：GSMSupported Frequency Bands：2G：GSM900/1800MHz3G：WCDMA B1/B8，TD-SCDMA B34/B39，CDMA BC04G：LTE TDD B34/B38/B39/B40/B41，LTE FDD B1/B3/B5/B8 Wi-Fi 6 Wi-Fi 6E (802.11ax, Dual band) 2 × 2 MU-MIMO Supports Bluetooth BT 5.3 I/O Ports Video / Data / Charging USB4（40Gbps）× 2Oculink（PCIe 4.0 × 4，63Gbps）× 1HDMI 2.1 × 1USB 3.2 Gen 2 Type-A × 2 SD Slot SD 4.0 ProtocolBus Port: UHS-ⅡVideo Speed Class: V90Theoretical Speed: Read 312MB/s, Write 312MB/sCompatible: SDHC / SDXC microSD Slot SD 3.0 ProtocolBus Port: UHS-IVideo Speed Class: V30I/O Performance: A2, Theoretical Speed: Read 160MB/s, Write 120MB/sCompatible: microSDHC / microSDXCmicroSD Card Slot and SD Card Slot are Mutually Exclusive. When One Card is Inserted, the Other Slot Becomes Inactive Audio Port 3.5mm Headphone/Microphone Combo Jack, Compatible With Apple Headphones (US version) Speaker Hole Yes, On Both Sides BIOS Reset Port Supports I/O Device Power Switch Power Button + Supports Fingerprint Unlock Keyboard QWERTY Full Keyboard With Backlight Design, Featuring 2-Level Brightness Adjustment Indicator Lamp Charging Indicator, Running Indicator, CapsLook Indicator, Fan Switch Indicator TouchPad Microsoft Precision TouchPad (PTP) Mouse Joystick for Simulating Mouse Control, Requires Switching Between "Gamepad/Mouse" Modes Joystick Hall Sensor Sticks, Stepless, Super Linear, No Dead Zone, Sink-in Design, Native Support For Down Pressure Sensitive L3 / R3 Game Accessories Buttons Analog Triggers Game Function Buttons Double Silk-printed Legends (ABXY, △○×□), Select, Start, Xbox (Menu) D-Pad Siamese Arrow Keys Handle Vibration Dual Linear Motors Sensor Six-axis Design: Three-axis Gravity Sensor, Three-axis Gyroscope Other Keys Handle / Mouse Switch Button，2 Custom Physical Buttons Battery Battery Type Lithium Polymer Battery Battery Capacity 67Wh Battery Life ntensive Usage: 2.5 HoursModerate Usage: 6-8 HoursLight Usage: 9 HoursBattery Life May Vary Depending on Specific Usage Environment Appearance Weight 1005g Size 227 × 160 × 23 mm Shell Material A and C Sides Are Made of 6061 Aluminum-magnesium Alloy, LG-DOW 121H Aviation ABS Covers Magnetic Suction Type, Can be Stored Inside the Shell Shell Color Black Thermal Design Active cooling with PC-grade fan + dual heat pipes, featuring a redesigned cooling module and fan. Accessories GPD WIN Max 2（2025） × 1 100W PD Protocol Adapter (5V/9V/12V/15V=3A, 20V=5A) ×1 USB-C Fast Charging Cable × 1 Warranty Card ×1 Product Manual ×1
