GPD

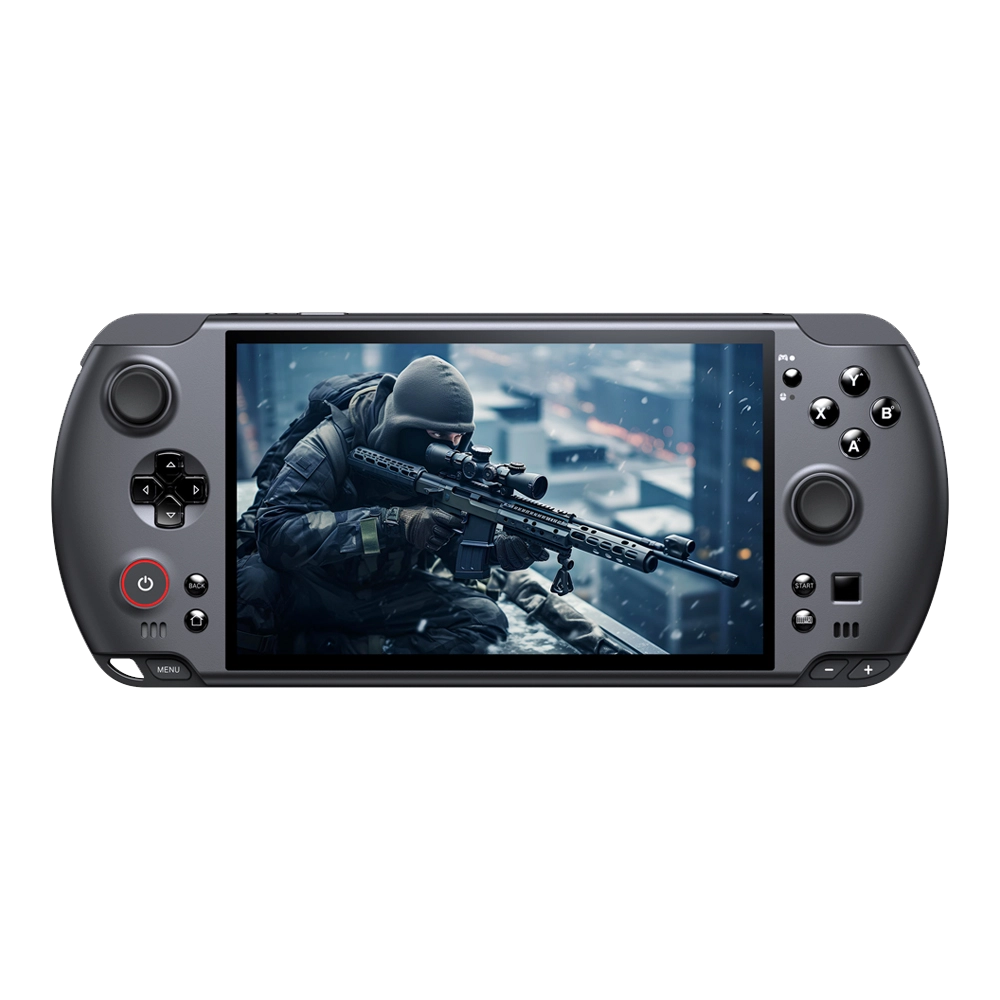

GPD WIN 5 Game Console

Tech Specs Basic Information Product Name GPD WIN 5 Product Positioning Handheld Game Console Operating Syste Pre-Installed With Windows 11 (24H2) Home 64-bit Display Characteristic 120Hz eSports monitor with AMD FreeSYNC™ Premium support, 6ms response time, and 100% sRGB wide color gamut Touch Panel 10-point Touch Control Screen Type The Sixth Generation Of Corning Gorilla Glass, LTPS Technology, 500nit Screen Size 7 inches, native landscape orientation Refresh Rate 120Hz Aspect Ratio 16:9 Screen Resolution 1920×1080 Pixels Per Inch 315 PPI CPU Product model AMD Ryzen™ Al Max+ 395 AMD Ryzen™ Al Max 385 # of CPU Cores / # of Threads 16 C / 32 T 8 C / 16 T Base Clock 3.0 GHz 3.6 GHz Max. Boost Clock 5.1 GHz 5.0 GHz AI Performance 50 TOPS 50 TOPS Floating-point Performance 126 TOPS 106 TOPS Total Cache 81.25 MB 40.5 MB Architecture Zen 5（Strix Halo） Zen 5（Strix Halo） Process Size 4nm 4nm TDP 45W-75W 45W-75W GPU Processor Graphics AMD Radeon 8060S AMD Radeon 8050S Graphics Frequency 2900 MHz 2800 MHz Compute Units 40 CU 32 CU Shading Units 2560 SU 2048 SU Floating-point Performance 858.41 GFLOPS（FP64）14.82 TFLOPS（FP32）29.73 TFLOPS（FP16） 782.33 GFLOPS（FP64）11.76 TFLOPS（FP32）25.73 TFLOPS（FP16） Pixel Rate 149.4 GPixel/s 149.4 GPixel/s Texture Rate 373.6 GTexel/s 298.9 GTexel/s Video Memory System Shared System Shared DP 7680 x 4320 @60Hz 7680 x 4320 @60Hz DirectX 12 Ultimate (12_2) 12 Ultimate (12_2) Vulkan 1.3 1.3 OpenGL 4.6 4.6 Storage Memory 32GB / 64GB Memory Types LPDDR5x 8000 MT/s Memory Channel Quad Channel Hard Disk Type M.2 SSD Hard Disk Port 1 × M.2 (Socket 3) Supported Specifications 1 × M.2 NVMe 2280 Standard Capacity 1TB、2TB Bus Specification PCIe 4.0 × 4 Multimedia Support Audio System Built-In Audio Chipset Loudspeakers Equipped with dual 2W super linear speakers, both headphones and built-in speakers support DTS: X Ultra audio technology, simulating physical 7.1-channel surround sound Microphone Dual integrated microphones Network Communications Wi-Fi Wi-Fi 6E (802.11 b/g/n/ac/ax)，AX210（1216） Bands 2.4GHz, 5GHz Bluetooth 5.3 I/O Ports Video / Data / Charging 1 × USB4 (40Gbps) supporting PD fast charging protocol & DisplayPort 2.1, with 100W PD charging (20V=5A) and DP output up to 7680×4320@60Hz;1 × USB 3.2 Gen2 Type-C (10Gbps) featuring DisplayPort 2.1; does not support charging, DP enables 7680 x 4320 @60Hz display output;1 × DC Port, 180W (20V/9A), Primary Charging Port;1 × Mini SSD slot, PCIe Gen4 ×1, sequential read/write (MB/s): 1600. Compatible only with BIWIN Mini SSD, 512GB~2TB (sold separately);1 × USB 3.2 Gen2 Type-A（10Gbps）; microSD Slot SD 3.0 ProtocolBus Port: UHS-IVideo Speed Class: V30I/O Performance: A2, Theoretical Speed: Read 160MB/s, Write 120MB/sCompatible: microSD / microSDHC / microSDXC Audio Port 1 x 3.5mm Headphone/Microphone Combo Jack, Compatible With Apple Headphones (US version) BIOS Reset Port Supports I/O Device Power Switch Power button (with RGB backlighting) + Fingerprint scanner (Windows Hello™ certified) Indicator Lamp Charging (Operating, Standby) Indicator Light Mouse Mouse 1: Right thumbstick simulates mouse operation (toggle "Gamepad/Mouse" mode required)Mouse 2: Optical finger mouse with press-to-confirm capability Gamepad Capacitive Analog Stick‌ – Ultra-high precision and sensitivity, ‌8000Hz sampling rate‌, ‌2000Hz reporting rate‌, ‌4000-step resolution‌, capable of detecting ‌angle shifts as small as 0.09°‌. Features a ‌sunk design‌ with ‌L3/R3 button support‌ for depressible clicks; Limit Ring‌: Made of ‌POM material, providing superior ‌wear resistance‌ and durability, eliminating wear debris. ‌Guide Ring‌: Constructed with a ‌metal ring‌, featuring an ultra-low ‌coefficient of friction (<0.1)‌, delivering ‌significantly smoother operation; The device features a unified D-pad, silicone rubber ABXY buttons with dual-layer silk-screened △○×□ symbols, along with a Back button, Start key, and an Xbox-style Menu key; ‌‌‌LT / RT are Hall-effect trigger buttons; LB / RB; LT/RT feature dual-mode toggle switches with long/short travel modes: Long travel‌: 256-step progressive analog (0~255); Short travel‌: Binary digital mode (0 or 255); Rear paddle buttons L4/R4, mappable and programmable Function Button Volume Up/Down Buttons, On-Screen Keyboard Toggle Button, desktop toggle shortcut (Win+D), On-Screen Keyboard Shortcut (Ctrl + Win + O), Controller/Mouse Mode Toggle Button Vibration Dual Haptic Motors, Software-Controlled with Modes: Off / Low / High Intensity Sensor 6-Axis Design: 3-Axis Accelerometer + 3-Axis Gyroscope (BMI260) Battery Battery Type External detachable polymer lithium battery (dual-mode: back-mounted/extension cord), available for separate purchase Battery Capaci
